Raj and Jeannette Mittra Microwave Lab

The Antenna Anechoic Chamber and Microwave Lab is used to support teaching activities in EE 432 UHF and Microwave Engineering, EE 330 Engineering Electromagnetics, EE 438 Antenna Engineering, EE 474 Satellite Communication, EE 497B Software Defined Radio, and future RF Design Engineering courses.

This lab contains:

  • one 10ft x 10ft x 20ft anechoic chamber, an electromagnetically shielded room for antenna characterization and communication system testing.

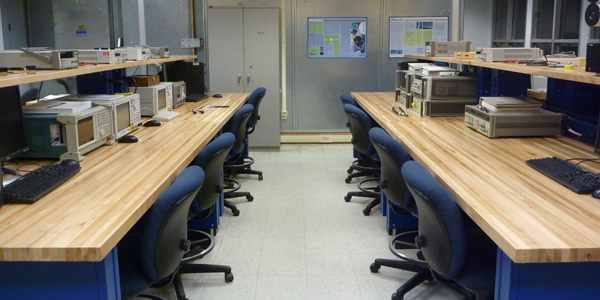

  • Microwave Lab students working
  • E4408B (ESA-L Series) 9 kHz - 26.5 GHz Spectrum Analyzer
  • HP 8569B 0.01 - 22 GHz Spectrum Analyzer
  • RSA 3303A 8 GHz, Real-Time Spectrum Analyzer
  • E5071C 9 kHz - 8.5 GHz / 300 kHz - 20 GHz Network Analyzer
  • HP 8510C 45 MHz - 110 GHz Network Analyzer
  • HP 8714B 300 kHz - 3 GHz Network Analyzer
  • HP 89410A DC - 10 MHz, with W-CDMA Capability Vector Signal Analyzer
  • HP 8748A S-parameter Test Set
  • HP 8970B Noise Figure Meter
  • HP 8515A 26 GHz -parameter Test Set
  • HP 8350B 12 GHz Sweep Oscillator
  • HP ESG-D2000A Digital Signal Generator
  • HP 8340B 10 MHz - 26.5 GHz Synthesized Sweeper

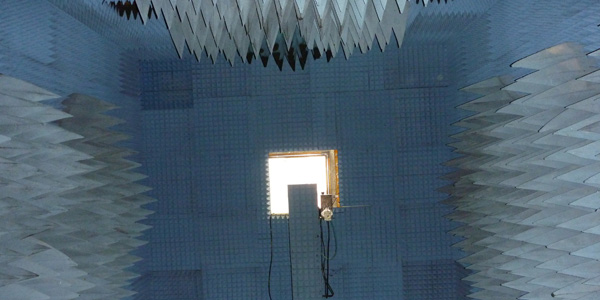

Anechoic Chamber Microwave lab picture
